Plot EXCODE summary diagnostics across multiple panels

plot_excode_summary.Rd

Visualizes an EXCODE summary as a multi-panel figure showing (i) observed counts with model fits (`mu*`), (ii) excess probability \(1 - \mathrm{posterior0}\), (iii) z-scores, (iv) \(-\log_{10}(p\text{-value})\), and (v) threshold “tiles” indicating which metrics exceed user-defined cutoffs.

Usage

plot_excode_summary(
  excode_summary,
  states,
  posterior_cutoff = 0.5,
  zscore_cutoff = 2,
  p_cutoff = 0.025,
  type = c("line", "bar")
)

Arguments

excode_summary

A data frame (or tibble) with at least the columns:

  • date: Date or POSIXt.

  • observed: Numeric observed counts.

  • posterior0: Numeric posterior probability of no excess (can contain NA, treated as 1).

  • zscore: Numeric z-score (can contain NA, treated as 0).

  • pval: Numeric p-value (can contain NA, treated as 1).

  • One or more columns named mu0, mu1, … with model fits.

states

Optional integer giving the number of latent states (i.e., how many mu* series to consider). If missing, it is inferred from the available columns matching "^mu\d+$". If provided, only mu0 through mu{states-1} that exist in excode_summary are used.

posterior_cutoff

Numeric in \([0,1]\). Horizontal reference line and threshold for the excess probability panel (default 0.5).

zscore_cutoff

Numeric. Horizontal reference line and threshold for the z-score panel (default 2).

p_cutoff

Numeric in \((0,1]\). Transformed to \(-\log_{10}\) for the p-value panel and used as a threshold in the tiles (default 0.025).

type

Character, either "line" or "bar" (partial matching disabled via match.arg). Controls whether panels are drawn with ribbons/lines ("line") or columns ("bar"). In the first panel, "bar" draws observed as bars and mu* as steps; "line" draws all series as lines.

Value

A patchwork object (composed of ggplot2 plots) that can be further modified with + (e.g., themes, scales) or saved with ggsave().

Details

Missing values are handled defensively before plotting: posterior0 = 1 (no excess), zscore = 0, pval = 1. A consistent black/green/orange-red palette is used for the first panel: observed in black; mu0 in green; remaining mu* from gold to tomato. Facet strips are placed on the right and a common theme is applied so panels align cleanly when combined with patchwork.

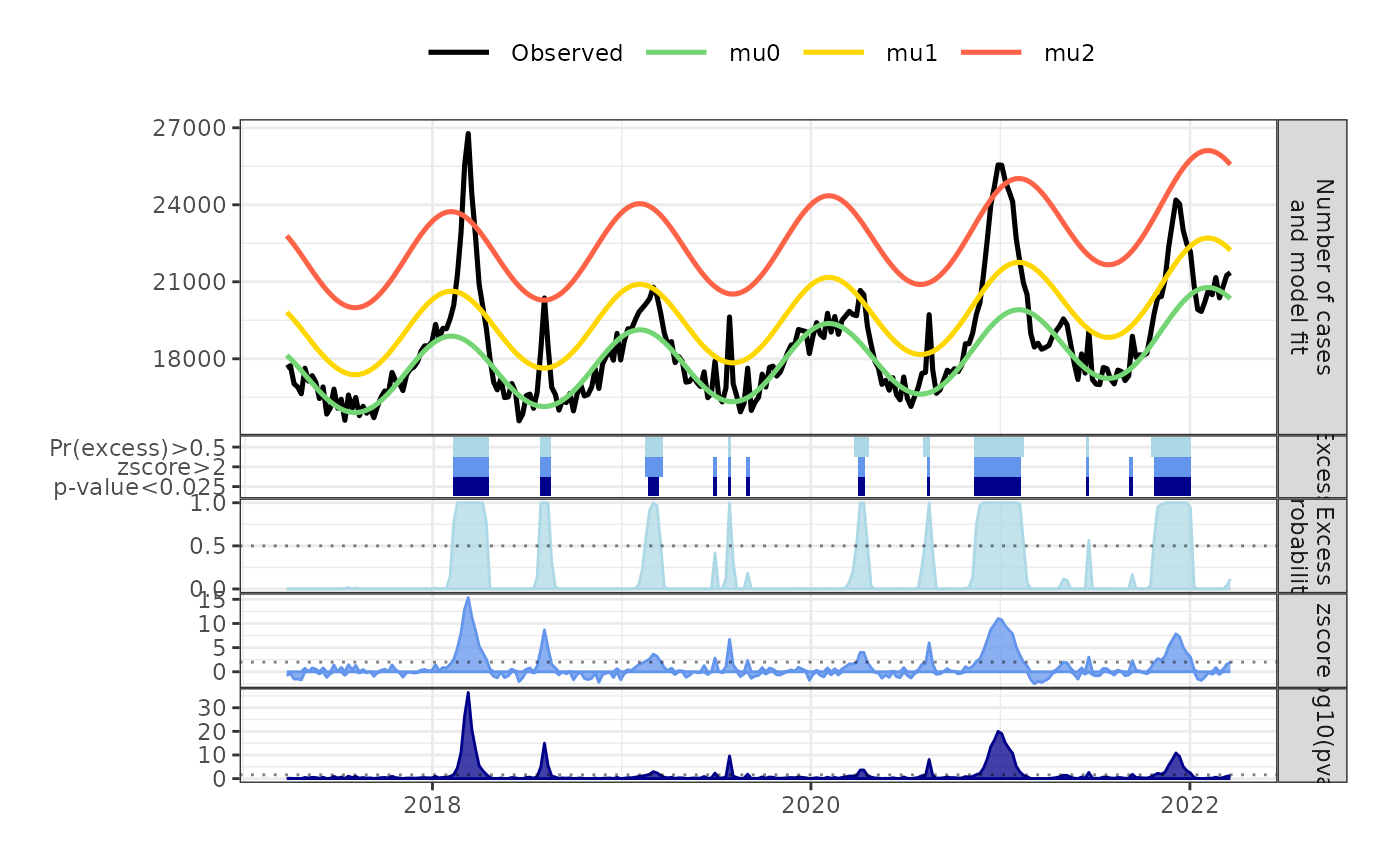

The final plot stacks five panels (from top to bottom):

  1. Observed counts and model fits.

  2. Excess probability \(1 - \mathrm{posterior0}\) with a dotted cutoff.

  3. z-score with a dotted cutoff (ribbon handles positive/negative).

  4. \(-\log_{10}(p)\) with a dotted cutoff at \(-\log_{10}(\mathrm{p\_cutoff})\).

  5. Binary “tiles” summarizing whether each metric exceeds its cutoff.

Required packages

Relies on ggplot2, dplyr, tidyr, patchwork, grid, and grDevices.

See also

plot_layout, ggplot, mutate, pivot_longer

Examples


data(mort_df_germany)
res_har_nb <- run_excode(surv_ts = mort_df_germany,
timepoints = 325,
distribution = "NegBinom",
states = 3,
periodic_model = "Harmonic",
time_trend = "Spline2",
return_full_model = TRUE)

sum_har_nb <- summary(res_har_nb)

plot_excode_summary(sum_har_nb, type="line")
